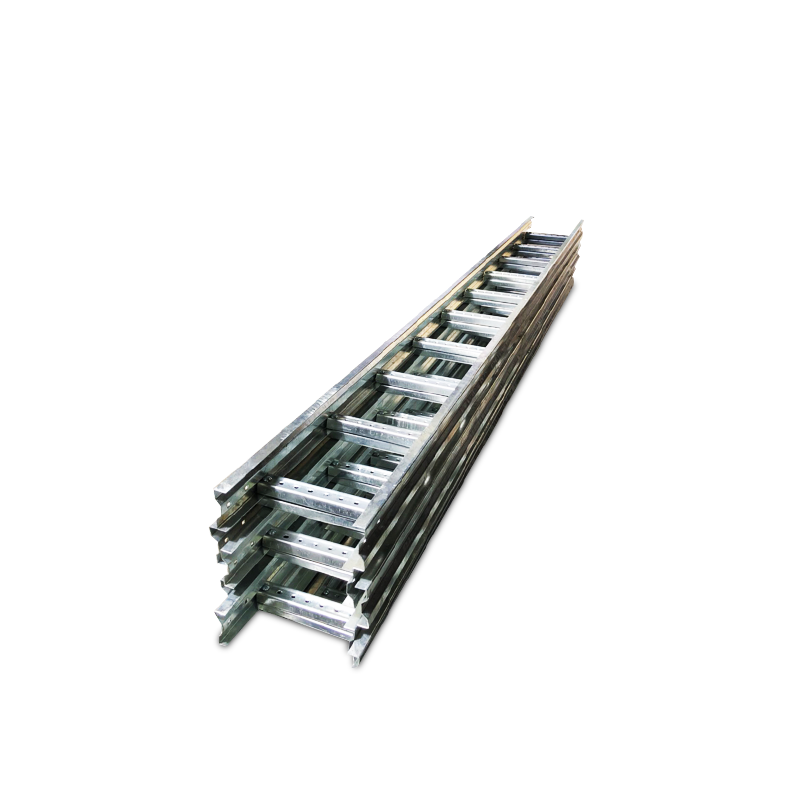

Cable Ladder
Cable Ladder use for installing the electrical system both indoor and outdoor as it is strength and tolerate to all environment conditions. It is made from a cold rolled sheet steel and coating with hot-dip galvanized or polyester powder coated.
SPECIFICATION
Material
Steel sheet 2.0 mm
Finished Surface
Hot-dip galvanized or Polyester powder coated (upon your requirements)
Assembly Method
Welding assembly
Application
Using for indoor and outdoor installation
| Model | Width (mm) | Length (mm) | Height (mm) | Thickness (mm) |
|---|---|---|---|---|
| CL-200 | 200 | 3000 | 100 | 2.0 |
| CL-300 | 300 | 3000 | 100 | 2.0 |
| CL-400 | 400 | 3000 | 100 | 2.0 |
| CL-500 | 500 | 3000 | 100 | 2.0 |
| CL-600 | 200 | 3000 | 100 | 2.0 |
| CL-700 | 700 | 3000 | 100 | 2.0 |
| CL-800 | 800 | 3000 | 100 | 2.0 |
| CL-900 | 900 | 3000 | 100 | 2.0 |
| CL-1000 | 1000 | 3000 | 100 | 2.0 |
