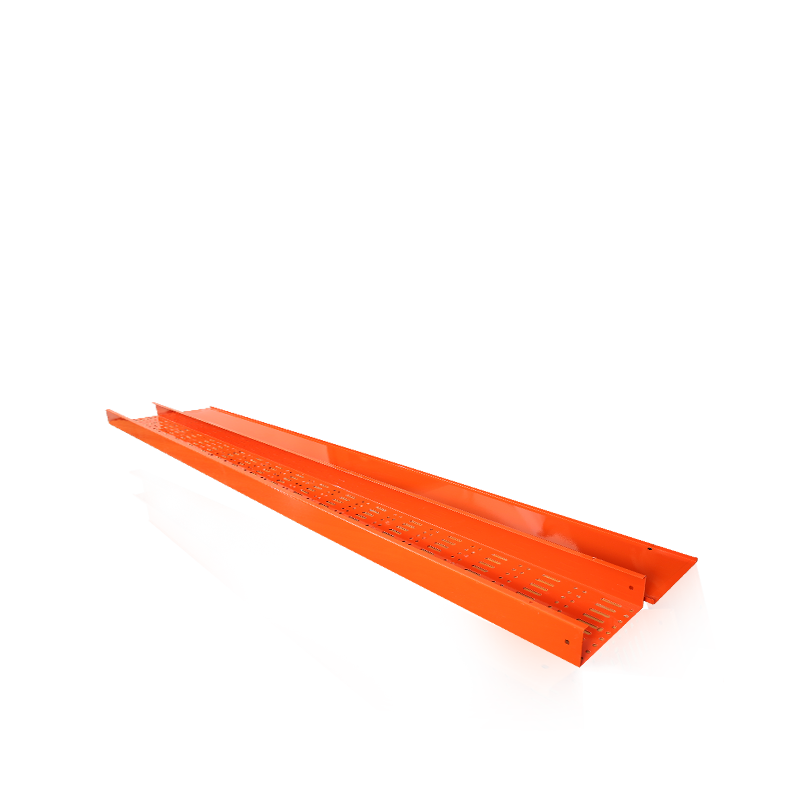

Cable Tray
Cable Tray is suitable for installation of an electrical system that need a special strength. It consisted of two main frames which welding the side rail with the rung in the range of 200 mm. it is easily to cut off the rung to extend the length of the rail and easy for installation. The finished surface is coated with polyester powder coated in textured with RAL 7032 or a hot dip galvanized upon requirements
SPECIFICATION
Material
Cold rolled steel sheet with 1.5 mm thickness
Finished Surface
Hot-dip galvanized or Polyester powder coated with RAL 7032 (upon your requirements)
Assembly Method
Welding assembly
Application
Indoor and outdoor installation
| Model | Width (mm) | Length (mm) | Thickness (mm) |
|---|---|---|---|
| CT-100 | 100 | 2.4 m | 1.2 / 1.5 |
| CT-200 | 200 | 2.4 m | 1.2 / 1.5 |
| CT-300 | 300 | 2.4 m | 1.2 / 1.5 |
| CT-400 | 400 | 2.4 m | 1.2 / 1.5 |
| CT-500 | 500 | 2.4 m | 1.2 / 1.5 |
| CT-600 | 600 | 2.4 m | 1.2 / 1.5 |
| CT-700 | 700 | 2.4 m | 1.2 / 1.5 |
| CT-800 | 800 | 2.4 m | 1.2 / 1.5 |
| CT-900 | 900 | 2.4 m | 1.2 / 1.5 |
| CT-1000 | 1000 | 2.4 m | 1.2 / 1.5 |
