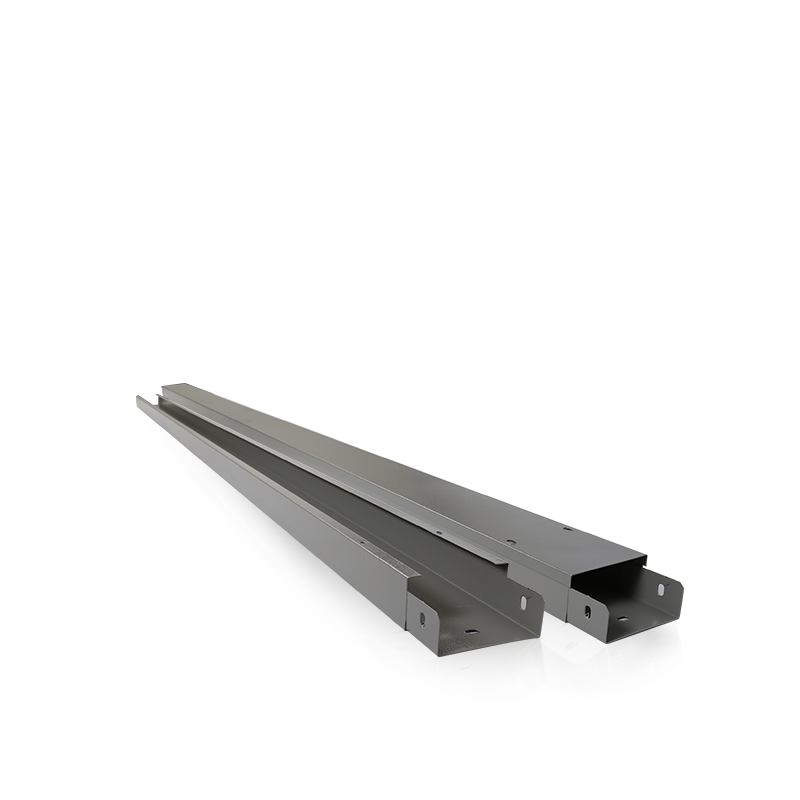

Wire Way
This type of wire way is suitable for installation of the electrical system or telephone cable inside the building. It is easy for maintenance as the cover is locked by a screw. It is coated with polyester powder coated in texture RAL 7032. The standard length is 8 feet long and a special sizes can be ordered upon the requirements.
SPECIFICATION
Material
Steel sheet with 0.8 – 1.0 mm thickness
Finished Surface
Polyester Powder Coated in RAL7032
Assembly Method
Screw type M6
Application
Suitable for indoor and outdoor installation
| Model | H x W x L (in x in x ft) | H x W x L (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| WW-01 | 2″x3″x8′ | 50 x 75 x 2440 | 0.8 | 6.01 |
| WW-02 | 2″x4″x8″ | 50 x 100 x 2440 | 0.8 | 7.06 |
| WW-03 | 3″x4″x8″ | 75 x 100 x 2440 | 0.8 | 8.09 |
| WW-04 | 4″x4″x8″ | 100 x 100 x 2440 | 0.8 | 9.12 |
| WW-05 | 4″x6″x8″ | 100 x 150 x 2440 | 0.8 | 11.20 |
| WW-06 | 6″x6″x8″ | 150 x 150 x 2440 | 0.8 | 13.26 |
| WW-07 | 4″x8″x8″ | 100 x 200 x 2440 | 0.8 | 13.27 |
| WW-08 | 6″x8″x8″ | 150 x 200 x 2440 | 1.0 | 15.33 |
| WW-09 | 4″x10″x8″ | 100 x 250 x 2440 | 1.0 | 15.30 |
| WW-10 | 6″x10″x8″ | 150 x 250 x 2440 | 1.0 | 17.36 |
| WW-11 | 6″x12″x8″ | 150 x 350 x 2440 | 1.0 | 19.36 |
| WW-12 | 8″x12″x8″ | 200 x 300 x 2440 | 1.0 | 21.45 |
